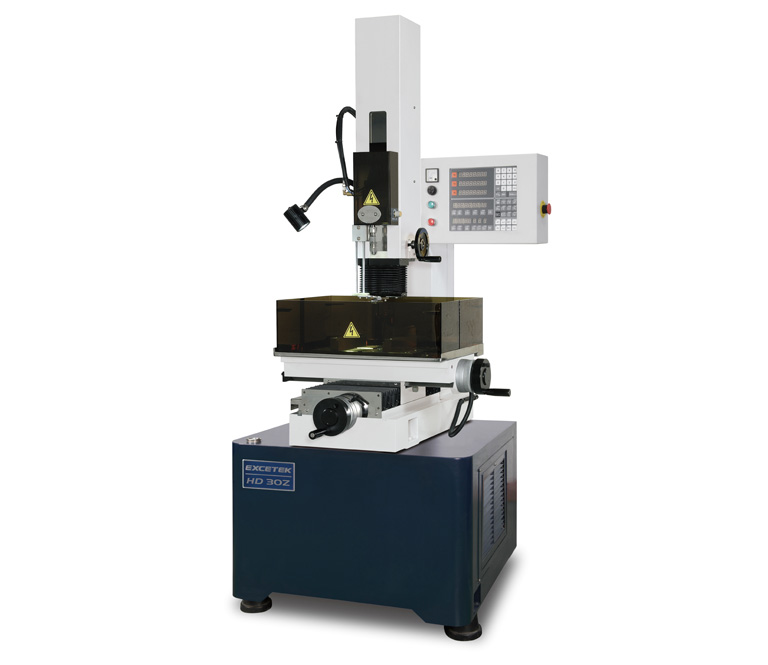

HD30Z


DOWNLOAD FLOOR PLANS

MachineHD30Z
X Axis travel300mm
Y Axis travel200mm
Z Axis travel345mm
Work table450 x 210mm
W axis Travel + Manual Guide Travel0 + 150mm
Electrode sizeØ 0.3 ~ Ø 3.0 mm
Max. electrode length400 mm
Maxi. workpiece size660 x 410 x 150mm
Maxi. workpiece weight150kg
Machine weight930kg
Max. Machining Current48A
Input power4.0KVA
Machine dimension1450 x 1250 x 2100mm

HD30Z

Lorem ipsum

HD400C

Lorem ipsum

HD600C

Lorem ipsum

HD800C

Lorem ipsum

Wire cutting EDM Excetek is the leading manufacturer of precision wire cut machines in Taiwan providing world class quality machines across its range. The advanced technology, yet simple user interface, ensures an easy-to-use machine without sacrificing any precision or functions.

Die sinking EDM The CNC die sinking EDM machines feature high quality and efficiency for all kind of sectors such as aerospace, automotive, defence, and tool and die industries. EXCETEK’s own CNC incorporates muti axis subroutines which can be built into the program very simply, thus the user can easily utilise the power of the CNC in a simple intuitive way.

Hole drilling EDM EXCETEK’s range of CNC drilling machines uses its recently developed and highly advanced CNC control unit designed specifically with hole drilling in mind. Now via a simple interface, the customer can control hole shapes, electrode and guide changes and up to 5 axis in an intuitive interface. Its intelligent import wizard can even import DXF files.

Die Sinking EDM Precision and speed – these characteristics determine the efficiency of your order processing during die sinking. Precision and speed – that’s what the name genius stands for. Originally derived from our control system developed in 2002, it has now become synonymous with our high-quality EDM machines.
