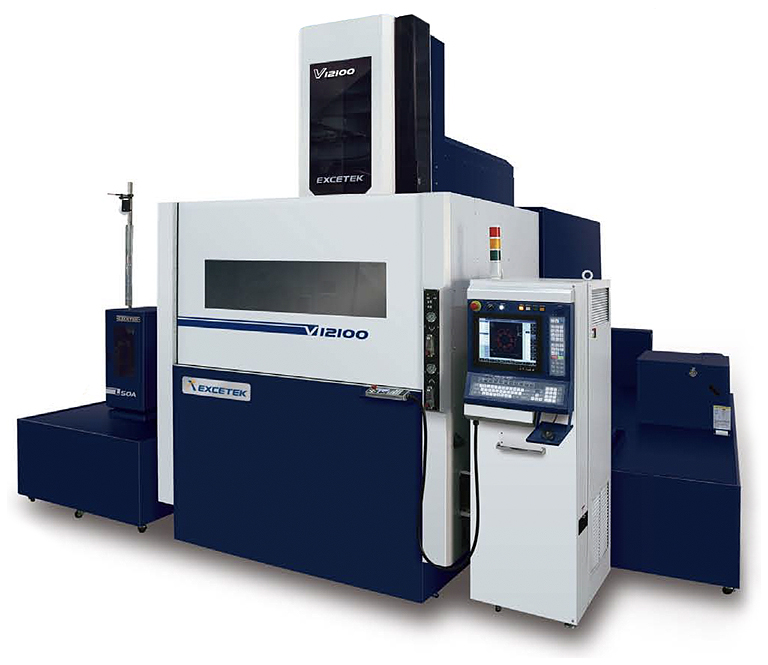

EXCETEK V12100


DOWNLOAD FLOOR PLANS

Standard 1m Z Axis wire EDM.

  • High speed auto wire threading system
  • High frequency calculating and pulse control
  • Easy to operate touch screen technology
Machine V12100
Max. Workpiece Size1,650 x 1,400 x 1,000mm
X Axis travel1,200mm
Y Axis travel1,000mm
Z Axis travel1,005mm
Max. Work piece Weight4,000kg
U&V Axis Travel260 x 260mm
Wire Diameter0.2~0.33mm
Number of axes controlled5 Axis AC servo motor
Maximum Taper Angle±30°/100mm
(wide diamond guide and nozzle)
Machine Dimensions4,400 x 3,925 x 3,205mm
Machine Weight12,600kg
Tank Capacity4,700L
