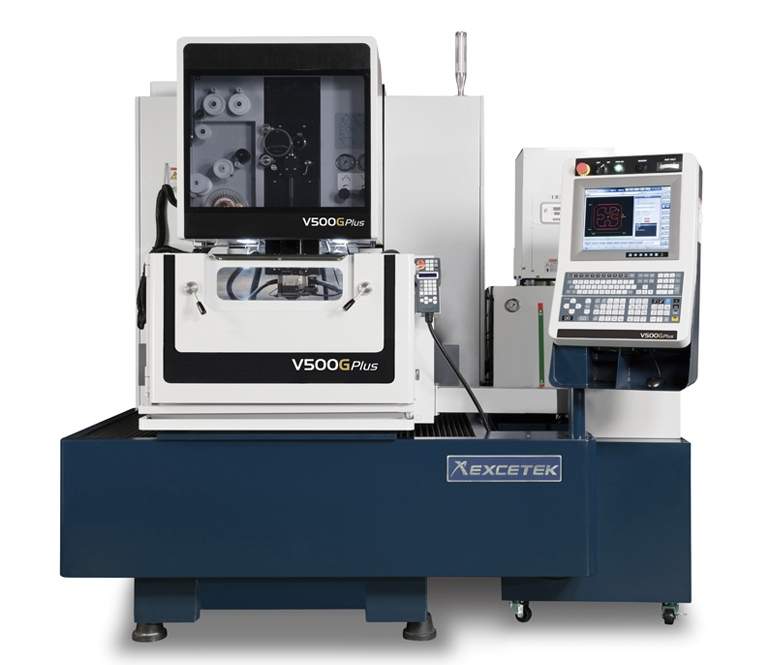

EXCETEK V500G PLUS


DOWNLOAD FLOOR PLANS

Mid-size machine with high-speed auto wire threading system.

  • High speed auto wire threading system
  • Corner control
  • High response AC servo motor for guaranteed accuracy
  • Extra wide machine base for added stability
MachineV500G PLUS
Max. Workpiece Size850 x 600 x 255mm
X Axis travel500mm
Y Axis travel300mm
Z Axis travel260mm
Max. Work piece Weight600kg
U&V Axis Travel120 x 120mm
Wire Diameter0.15~0.3mm
Number of axes controlled5 Axis AC servo motor
Maximum Taper Angle±26°/100mm
(wide diamond guide and nozzle)
Machine Dimensions2,215 x 2,480 x 2,205mm
Machine Weight3,500kg
Tank Capacity750L
