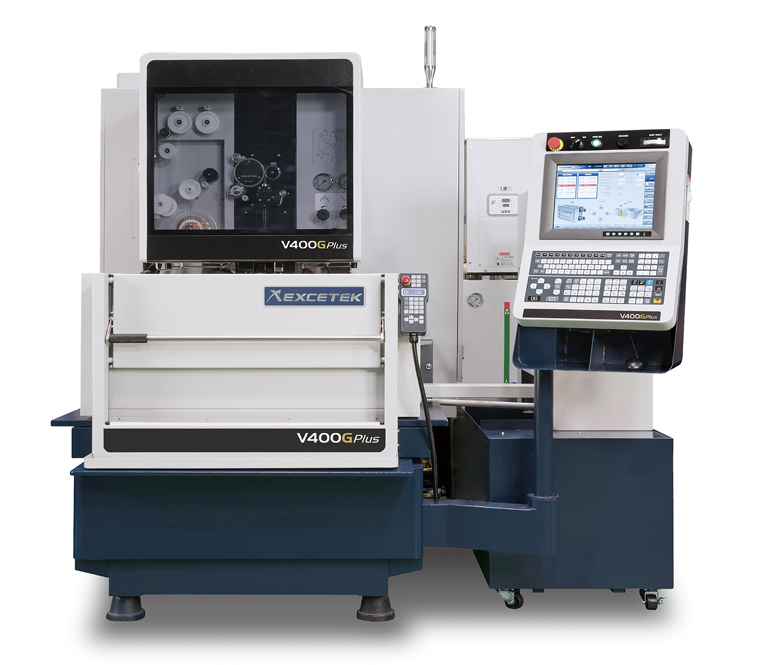

EXCETEK V400G Plus


DOWNLOAD FLOOR PLANS

Our most popular machine, the compact size wire EDM used for ultra-precise machining.

  • High speed auto wire threading system
  • Corner control
  • High response AC servo motor for guaranteed accuracy
Machine V400G PLUS
Max. Workpiece Size750 x 550 x 215 mm
X Axis travel400mm
Y Axis travel300mm
Z Axis travel220mm
Max. Work piece Weight500kg
U&V Axis Travel80 x 80mm
Wire Diameter0.15~0.3mm
Number of axes controlled5 Axis AC servo motor
Maximum Taper Angle±22°/80mm
(wide diamond guide and nozzle)
Machine Dimensions2100 x 2230 x 2175 mm
Machine Weight2,700kg
Tank Capacity650L

V400G Plus

Our most popular machine, the compact size wire EDM used for ultra-precise machining

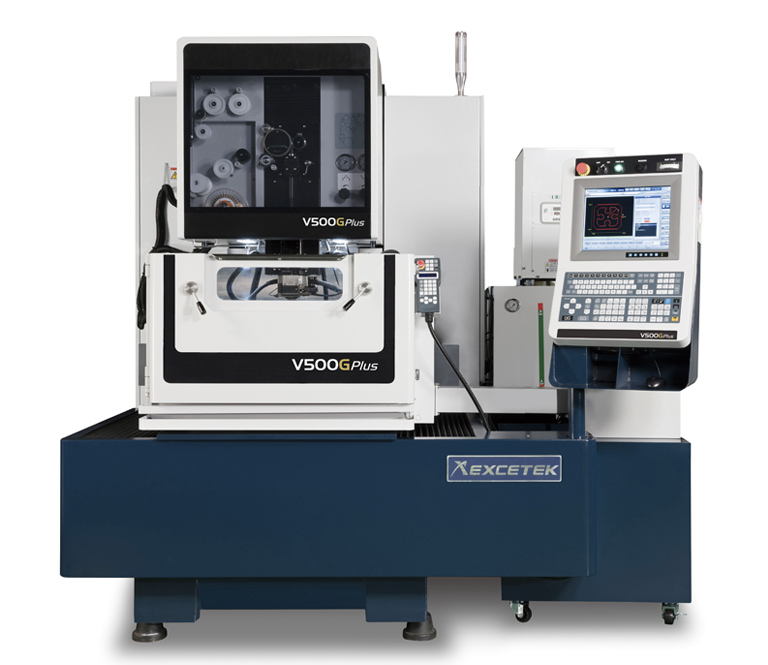

V500G Plus

Mid-size machine with high-speed auto wire threading system

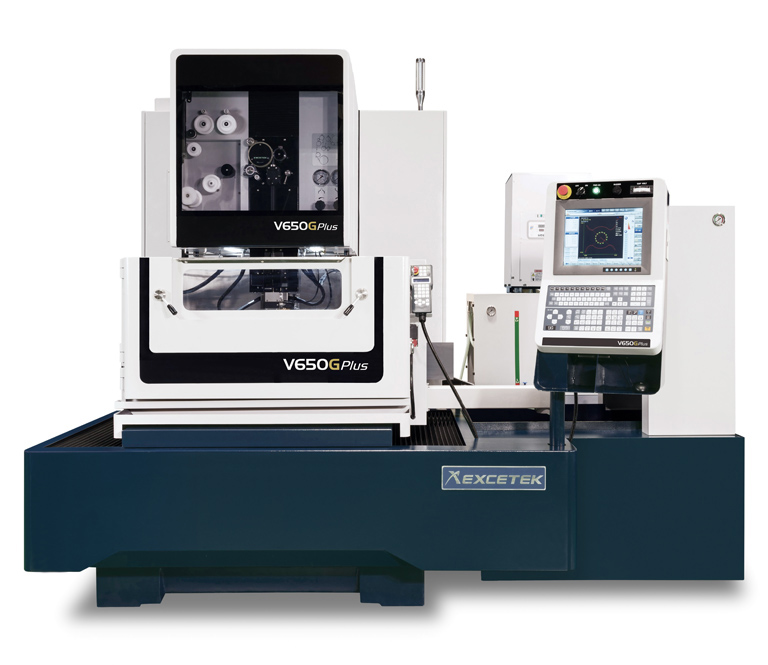

V650G PLUS

A machine that offers optimum flexibility

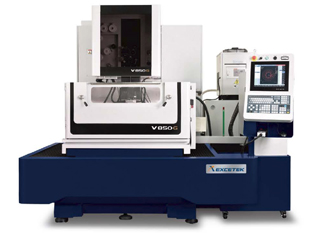

V850G PLUS
